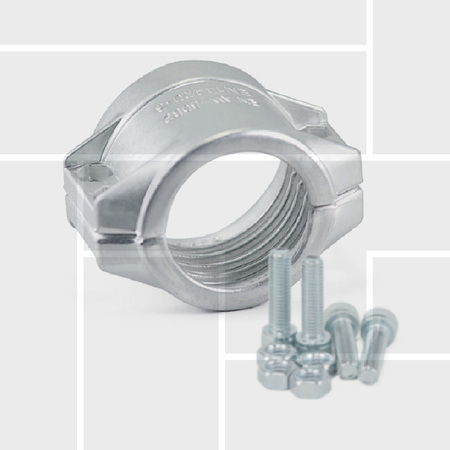

C01 Safety clamps EN14420 DIN2817 bolted clamping LNC TW |
13 (1/2"), 19 (3/4"), 25 (1"), 32 (1"1/4), 38 (1"1/2), 40 (1"1/2), 45 (1"1/2), 50 (2"), 63 (2"1/2), 75 (3"), 80 (3"), 90 (3"), 100 (4"), 125 (5"), 150 (6"), 200 (8") |
Aluminum (A356), S/S (1.4408, 1.4301), Brass (CW614N, CW617N) |

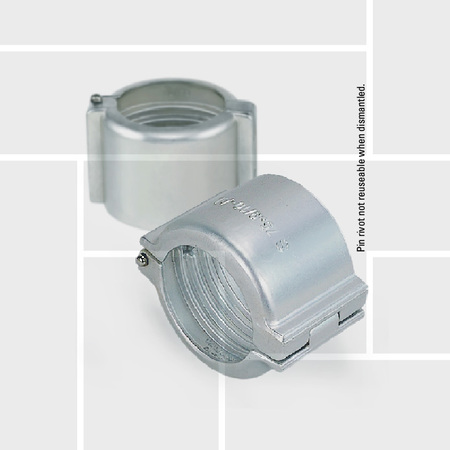

C02 Safety Clamps Pin-Fixing EN 14420-3 (DIN 2817) |
13 (1/2"), 19 (3/4"), 25 (1"), 32 (1"1/4), 38 (1"1/2), 40 (1"1/2), 45 (1"1/2), 50 (2"), 63 (2"1/2), 75 (3"), 80 (3"), 90 (3"), 100 (4"), 125 (5"), 150 (6"), 200 (8") |
Aluminum (A356), S/S (1.4408, 1.4301), Brass (CW614N, CW617N) |

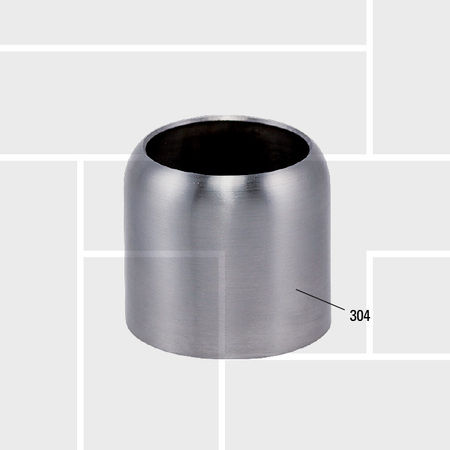

C04 Crimping ferrule, light duty in 304 & aluminum |
19 (3/4"), 25 (1"), 35 (1"1/4), 38 (1"1/2), 42, 50 (2"), 65 (2"1/2), 80 (3"), 100 (4") |
Stainless steel (304), Aluminum |

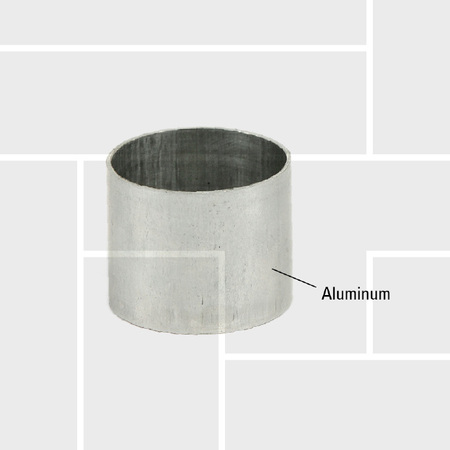

C05 Crimping sleeve, light duty in aluminum |
19 (3/4"), 25 (1"), 35 (1"1/4), 38 (1"1/2), 42, 50 (2"), 65 (2"1/2), 80 (3"), 100 (4") |
Stainless steel (304), Aluminum |

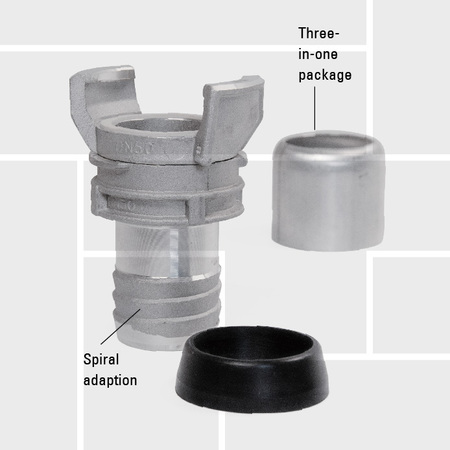

F07 Composite assembly scroll tail package Guillemin and external thread |
11/2", 2", 21/2", 3", 4" |
Aluminum, Stainless steel (316) |

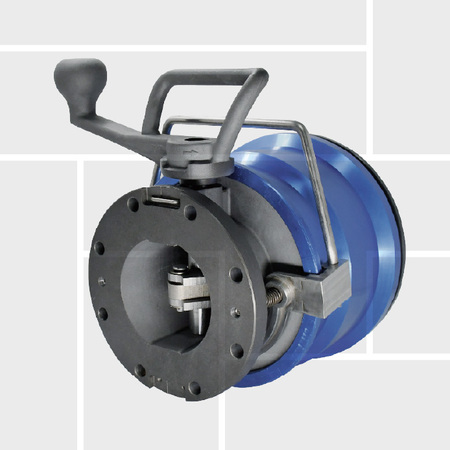

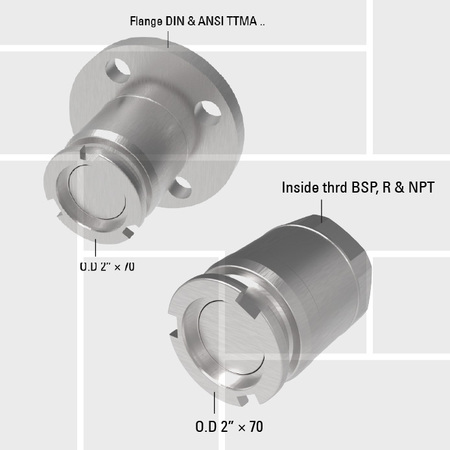

Serving as a flanged quick-disconnect fitting, ASTM flange on request. Offering the comprehensive range DN15 to DN150. Full range DN20 to DN150 for mounting and delivery on order. Our DTD tank units and hose units are hard coated and sealed with FKM O-rings, ensuring no leakage or spillage during the transfer process. Body Test: No visual leakage or structural failure under pressure 2.4MPa for lasting 180s. Air Test: No visual leakage at either stage 0.1MPa, 0.2MPa, 0.3MPa, 0.4MPa, 0.5MPa or 0.6MPa. We offer MKS lever coupler and VKS by the integrated hose tail, made of brass and 316. Less potential leakage than combination of a coupler plus a thread fitting. NBR, FPM CSM gaskets attached. |
